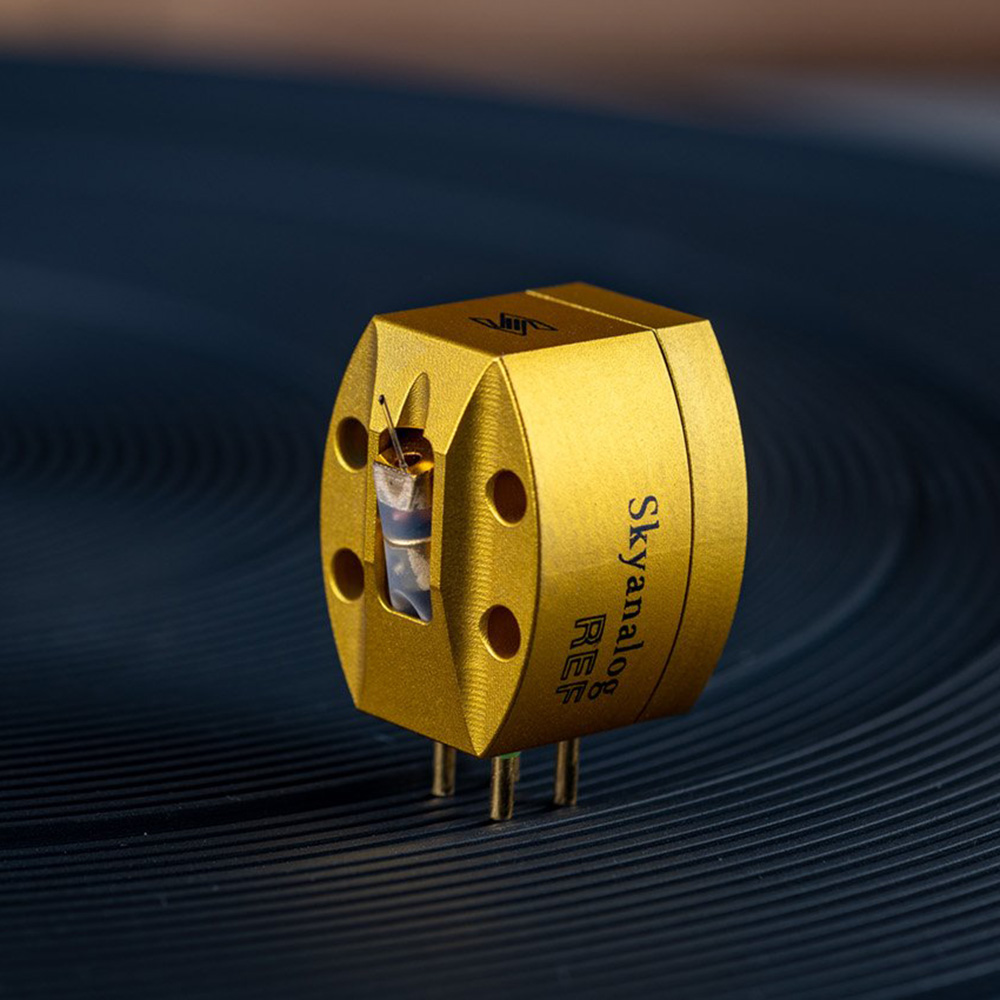

Skyanalog REF – Moving Coil Cartridge

Physical Specifications

• Cantilever: Sapphire
• Stylus: Micro Ridge
• Stylus Tip Radius: R/R=3/80Um
• Vta: 20 Degrees
• Coil: Pure Iron Square Coil
• Weight: 10 Grams

Electrical Specifications

• Output Voltage: 0.35mV AT 3.54CM/S
• Internal Impedance: 5 Ohms
• Frequency Response: 20 – 30,000Hz +/- 1dB
• Channel Separation: Better Than 35dB AT 1KHz
• Channel Balance: Better Than 0.5dB

Dynamic Specifications

• Tracking Ability At 315 Hz At Optimum Tracking Force: 80Um
• Dynamic Compliance: 15Um/Mn

Setup Instructions

• Recommended Loading: 100-330 Ohms
• Recommended Tracking Force: 1.0-1.6Grams
• Optimum Tracking Force: 1.3Grams
• Recommended Tonearm Mass: Medium
• Optimum Working Temperature: 23°C
• Break-In Period: 30 Hours
