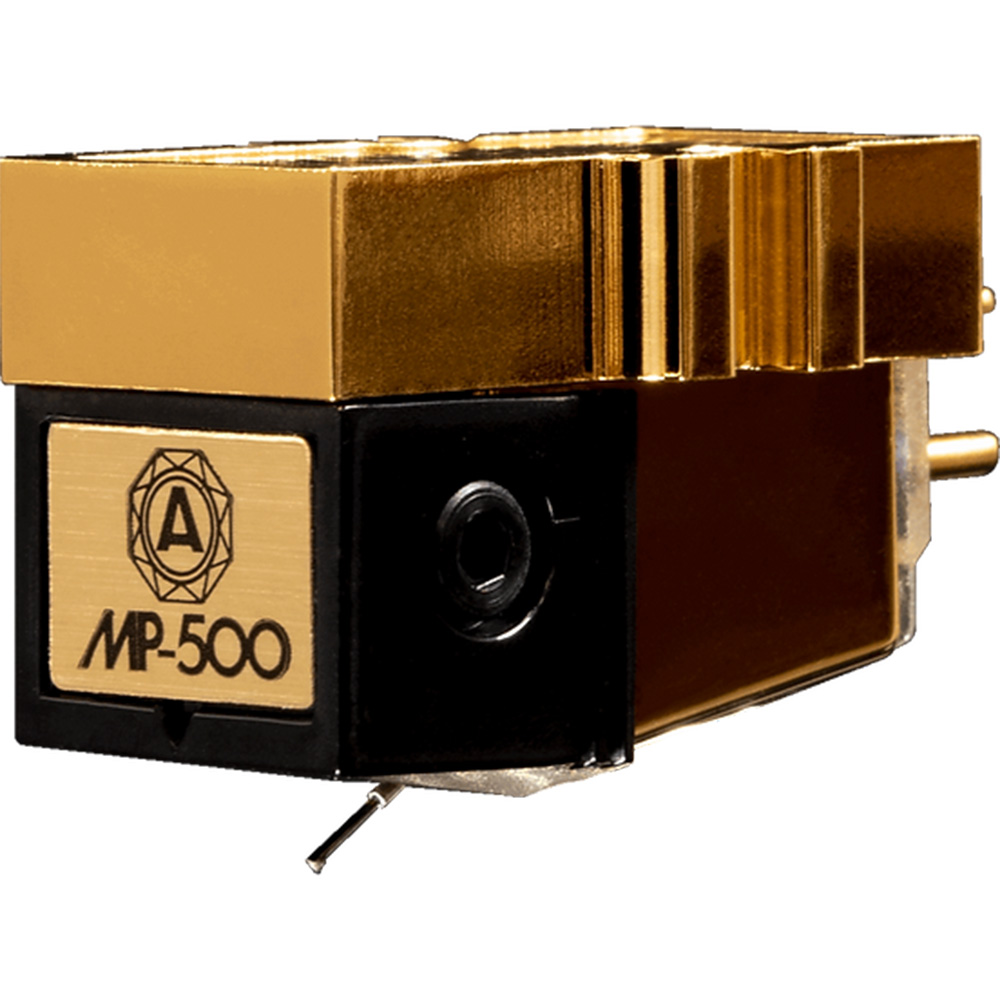

Nagaoka MP500 MM Cartridge
Features:
• Exclusive superrigid body for ultra low resonance and superlative fidelity
• SuperFine polished line contact diamond stylus
• Powerful samarium cobalt magnet
• Low-mass, high strength boron cantilever
• Carbon Fibre reinforced plastic shoe
• Anti-ferro magnetic permalloy shield casing
Technical data:
• Principle: MM
• Cantilever: High-strength boron
• Frequency response: 20 – 25,000 Hz
• Channel balance: better than 1.0 dB
• Channel separation: better than 27 dB at 1kHz
• Output voltage: 3 mV (5 cm/sec)
• Tracking force: 1.3 – 1.8 g
• Impedance: 47 000 ohms
• Dynamic compliance: 8.5 x10-6/dyne
• Weight: 8.0 g
• Mounting: 1/2 inch
• Microsection: super-fine, line-contact diamond
