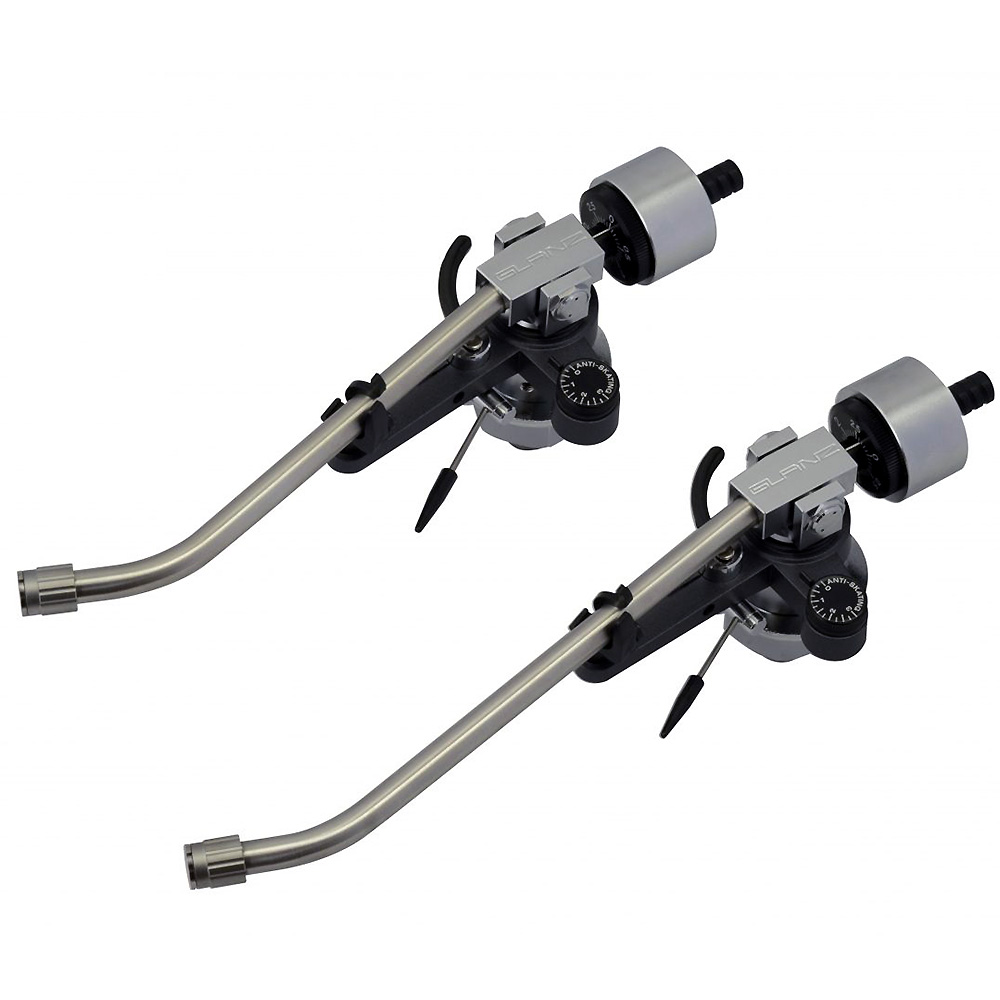

Glanz B Series Tonearm
• The arm tube and vertical shaft parts (which greatly influence sound quality) are made from stainless steel.
• Along the main conduction tube we have reproduced a material close to stainless steel supplement, using brass with a tough chrome plating.
• The fulcrum is strongly supported with radial bearings.
• The anti-skate mechanism is insulated with ABS resin, and reduces reverberation distortion.
Specification:
| MODEL | MH-9B | MH-10B |
| Balancing | Static Balancing | |
| Total Length (*1) | 252mm | 290mm |
| Effective Length (*2) | 229mm | 254mm |
| Practical Length (*3) | 214mm | 239mm |
| Offset Angle | 23 ° | 22 ° |
| Adaptable cartridge weight (incl headshell） |
11～28g | 11～29g |
| Total weight | 690g | 710g |
| Overhung | 15mm | 15mm |
| Tracking weight range | 0.25g (Minimum scale) – over 6g (3g/360 °rotation) | |
| Adjustable height (*4) | 41mm～ | |
| Headshell weight | option | |
| Shaft dimensions to mounting base | 16mmΦ | |
| Mounting hole size | 24mmΦ | |
| Fixing depth size | Up to 20mm (Another size is available) | |
(*1) : From counter weight shaft end headshell terminal.
(*2) : From centre of tonearm Base to stylus tip.
(*3) : From centre of tonearm Base to centre of turntable)
(*4) : From plinth surface to horizontal height of arm tube
