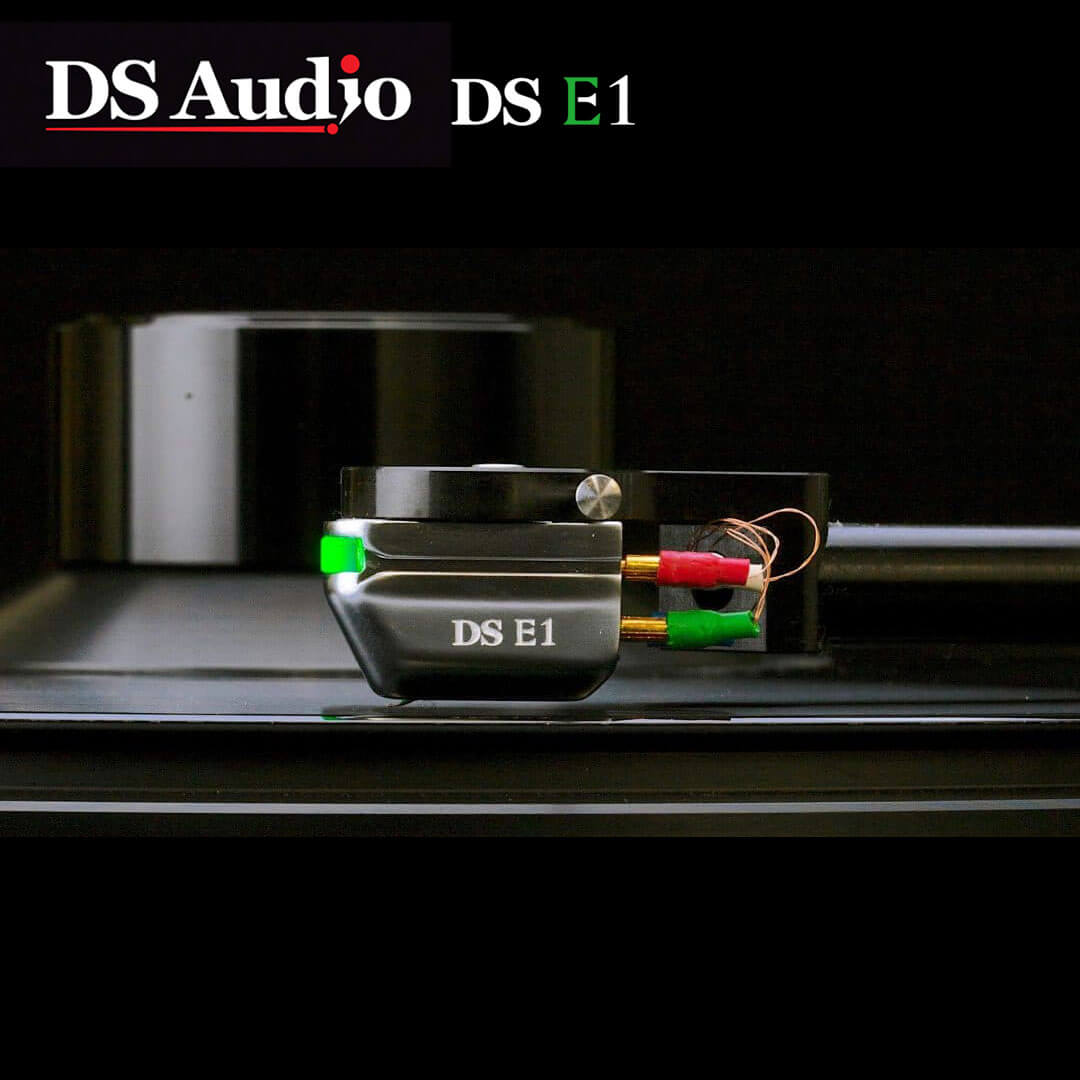

DS AUDIO DS-E1 OPTICAL CARTRIDGE

DS-E1 has a wire suspension mechanism which is the same design as DS Master 1 and DS-W 2 and DS002 By implementing it, you realize high channel separation and stable music playback.

Moreover, by arranging the position of the slit at the position close to the needle point, it is possible to retrieve information with higher freshness.

Like the more expensive DS Audio cartridg- es, the DS-E1 cartridge body is machined from aluminum and echoes their distinctive design for best optical performance. The DS 002 features an aluminum cantilever and Elliptical needle to accurately reproduce the music recorded on the vinyl record album.

DS AUDIO DS-E1 TECH SPECS

DS-E1 optical cartridge

Body material: Aluminium

Cantilever: Aluminium

Stylus: Elliptical

Needle pressure: 1.6-1.8g (1.7g recommended)

Signal output: Photo-electric conversion:

Output signal level: > 50mV

Channel separation: > 24dB (@ 1kHz)

Weight: 8.1g

DS-E1 equaliser / phonostage

Inputs: RCA

Outputs : RCA x 2

Rated output voltage: 500mV (@ 1kHz)

Impedance: 120Ω

Preamplifier input impedance: > 10kΩ

Dimensions: 20 (w) x 7 (h) x 16 (d) cm

Weight: 1.4kg
