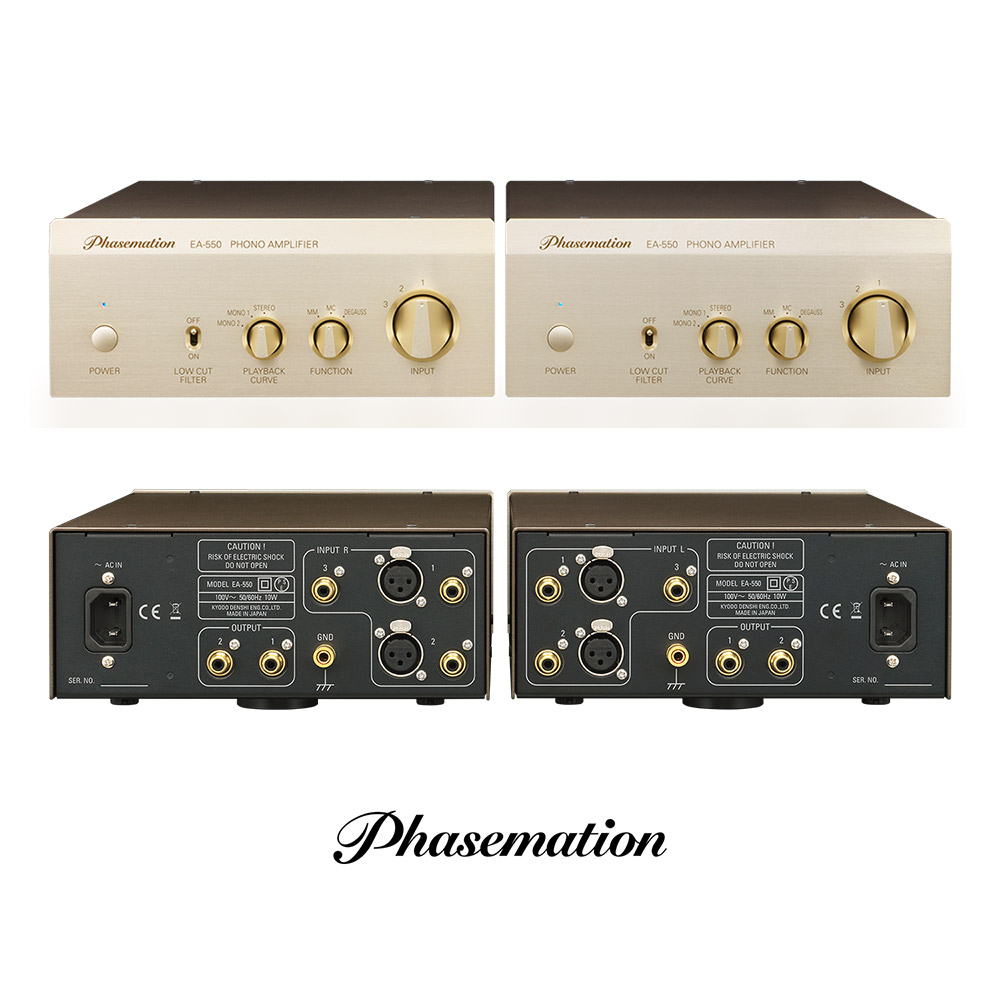

Phasemation EA-550 Phono Amplifier Monoblocks
Main Features
Strong chassis structure of a 2 unit box with Lch and Rch being independent and completely monaural.
V-I / I-V conversion type all-stage symmetrical non-feedback amplifying circuit due to all discreet parts.
Three input terminals are equipped and MM/MC switching is possible for each. In addition, inputs 1 and 2 support balanced inputs due to the XLR connector.
A 2nd order CR type low cut filter with non-feedback is equipped. Plays warped phonograph records without any music deterioration and prevents the speakers (woofers) from shaking.
Three types of playing curve changeover switches are equipped. For the equalizer characteristics, along with the RIAA characteristics for the previous stereo, Mono1 (used on the DECCA label and so forth) and Mono2 (used on the Colombia label and so forth) are equipped as a particular characteristic for a monaural. This will allow higher fidelity playback than the DECCA and Columbia labels.
A “degaussed” circuit is equipped.
By choosing “degauss” with the functions and playing the record for about 30 seconds, the MC cartridge with a metal core that was magnetized is degaussed and the sound quality becomes clear.
High Quality Parts throughout by ELNA, Rohm, Zenier
Product Specification
| Form | V-I/I-V conversion type all-stage symmetric non-feedback equalizing amplifier | |
| Input Type (Cartridge) | MM | MC |
| Input Sensitivity | 2.5 mV | 0.13 mV |
| Suitable Cartridge Output Impedance | 47 kΩ or less | 1.5 to 40Ω |
| Gain | 38 dB | 64 dB |
| Input Equivalent S/N Ratio | –120dBV | –140dBV |
| Rated Output Voltage | 200 mV (1kHz) | |
| Rear Curve Tolerance | ± 0.5 dB (20Hz to 20kHz) | |
| Power Consumption | 10W (100VAC 50 – 60Hz) for each Ch | |
| Dimensions | 211 (W) × 93 (H) ×360 (D) | |
| Weight | 5.5kg for each Ch | |
