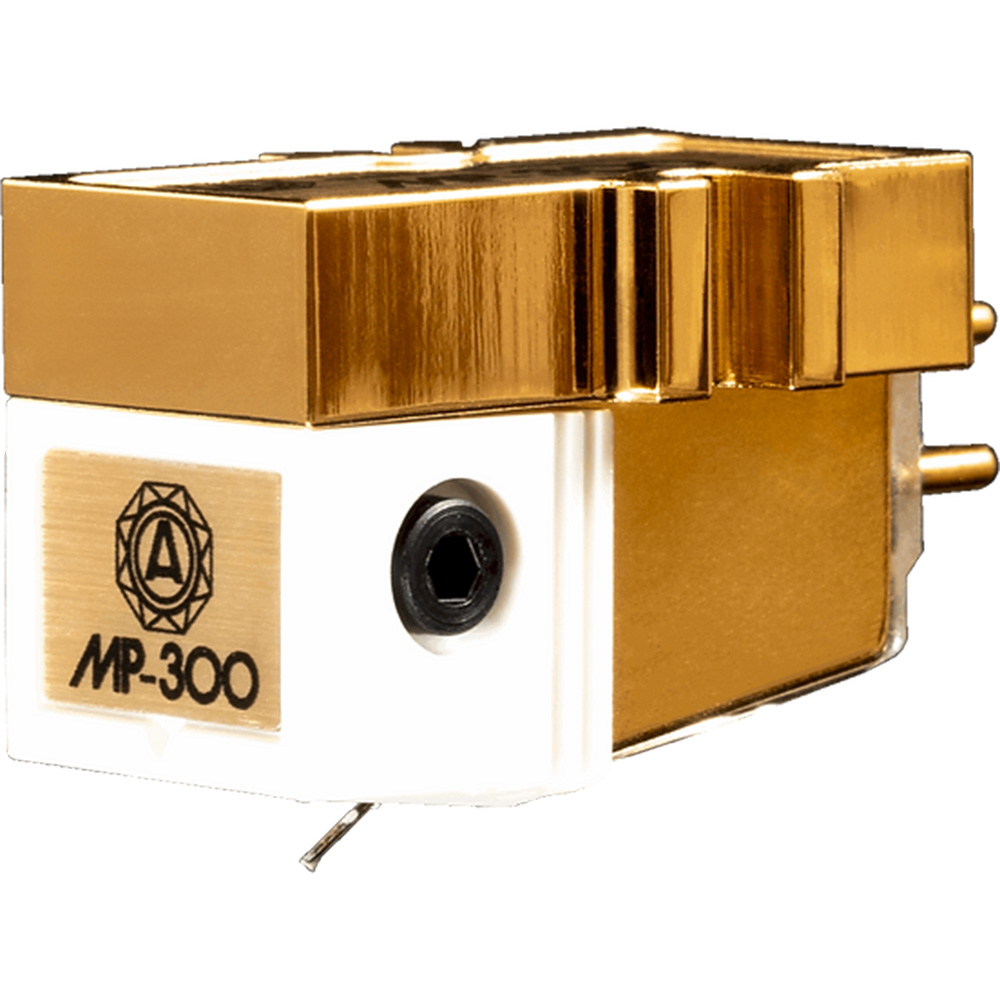

Nagaoka MP300 MM Cartridge

Features:

Exclusive superrigid body for ultralow resonance and superb fidelity
• SuperFine polished elliptical diamond bonded stylus
• Powerful samarium cobalt magnet
• Low-mass, high strength boron cantilever
• Carbon Fibre reinforced plastic shoe
• Anti-ferro magnetic permalloy shield casing

Technical data:

• Principle: MM
• Cantilever: High-strength boron

• Frequency response: 20 – 25,000 Hz
• Channel balance: better than 1.0 dB
• Channel separation: better than 25 dB at 1kHz

• Output voltage: 4 mV (5 cm/sec)
• Tracking force: 1.3 – 1.8 g
• Impedance: 47 000 ohms
• Dynamic compliance: 7.2 x10-6/dyne
• Static compliance: 20 x10-6/dyne
• Weight: 8.0 g
• Mounting: 1/2 inch

• Microsection: super-fine polished, elliptical, bonded diamond
