AMG

AMG V12 J2 TONEARM

£4,750.00

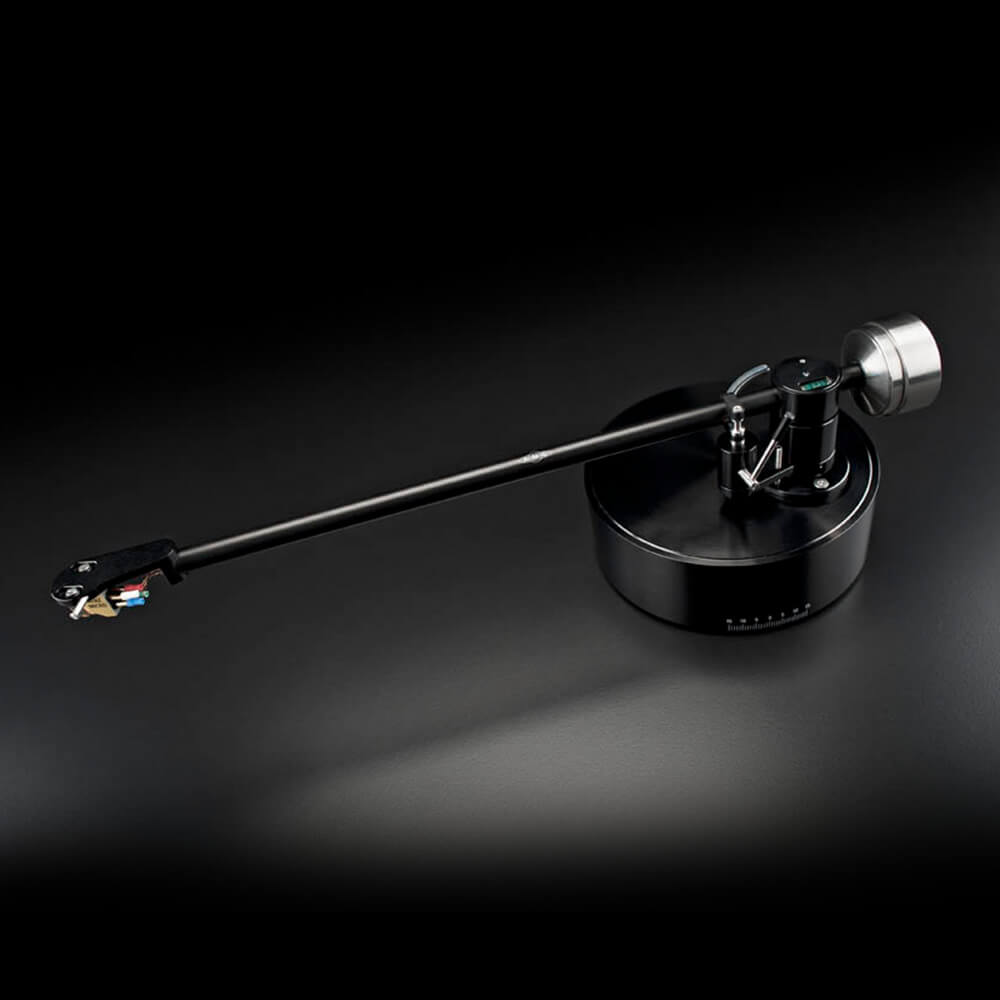

The award winning AMG 12J2 12” tonearm features our patented dual-pivot bearing: The vertical bearing, similar to a technique used in helicopter rotors, utilizes 2 steel wires that allow fine azimuth adjustment while eliminating bearing play. The horizontal axle consists of a hardened tool steel needle roller bearing. The aircraft grade aluminum armwand is anodized for resonance control. The 12J2’s internal wiring is multiple stranded high-purity copper, and features magnetic anti-skate and precision locking VTA adjustment.

Add to wishlist
Categories: ,
Description

AMG V12 J2 TONEARM

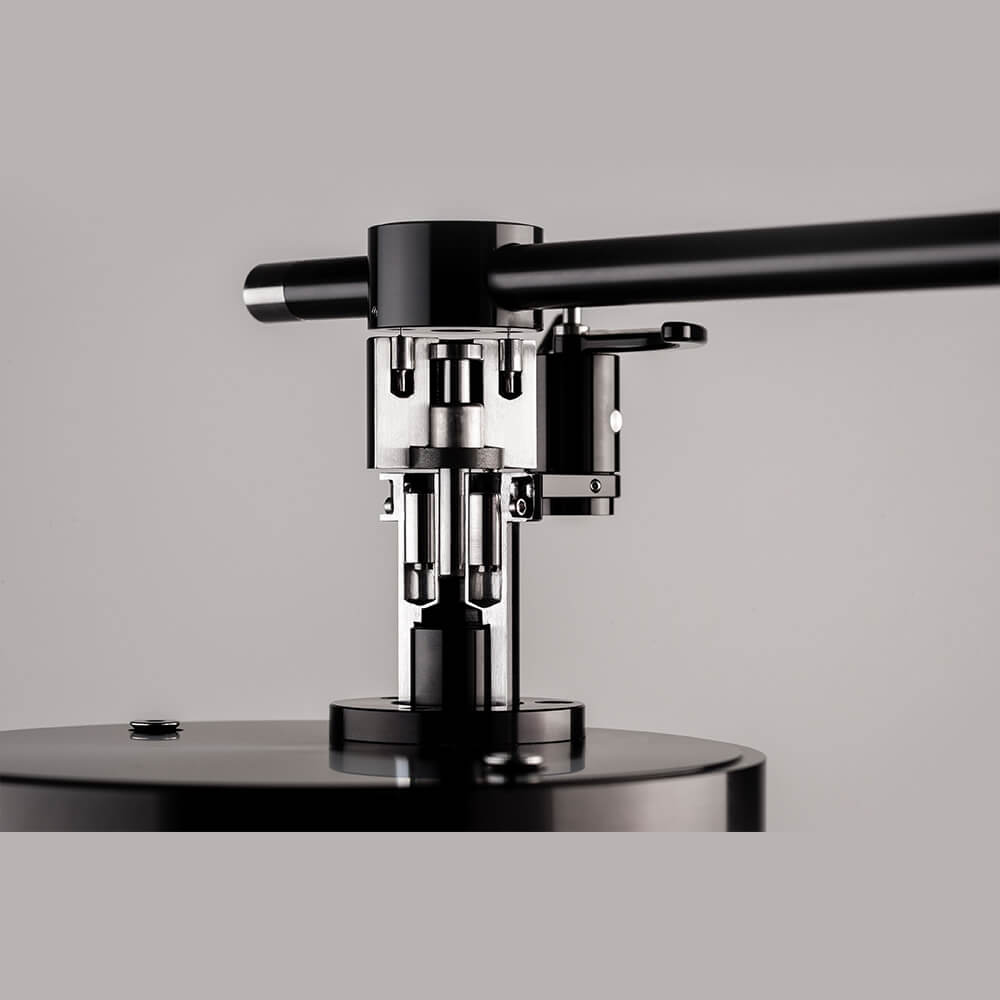

Bearing:

  • Dual-pivot design instead of standard gimbaled bearing
  • Vertical bearing technology inspired the technique used stabilize the rotor heads of helicopters
  • Uses two 0.5 milimeter thick spring steel wires allows for fine azimuth adjustment while eliminating bearing play
  • Horizontal axle made from hardened tool steel, precision ground to a backlash-free fit with needle bearing
  • Extremely precise and maintenance free

Armwand:

  • Aircraft-grade aluminum
  • Anodized aluminum tube controls resonance
  • 12 gram effective mass

Counterweight:

  • 2-piece with Teflon-decoupled sleeve

Copper Internal Wiring:

  • Multiple gauges of high quality copper

Magnetic Anti-skating:

  • Decoupled via ring magnet and 2 bar magnets
  • Magnetic fields isolated in a patented bearing housing

VTA:

  • Precision locking system allows for easy adjustment

Specifications:

Effective Length: 304.8mm
Pivot to Spindle Length: 291.4mm
Overhang: 13.4mm
Offset Angle: 17.89 degrees
Effective Mass: 12.2 grams
Null Points: Inner: 66.04mm, Outer: 120.9mm

How to find us

Contact Us to book a demo in our Elland Listening room.

Burley Street, Elland, HX5 0AQ
Phone: 01422 250590
Email: info@thevinyladventure.com

Ask a question

    Your Name (required)

    Your Email (required)

    Your Message

    Additional information
    Brand

    AMG
    About brand
    amg-brand

    Precision engineering, innovative design, and visual aesthetics are embodied in the products from AMG (Analog Manufaktur Germany). The AMG brand was created with collaboration between a German family’s precision manufacturing facility and a group of audio industry experts to advance the art of vinyl playback.
